NPCT-II/III/DCS Distributed process control experimental device This device’s control system adopts Foxboro (Invensys Foxboro)’s T2550 distributed control system, which is applied to distributed data acquisition, distributed data control, alarm, multi loop PID control and multiple T2550 control system that connected to a new type of high speed ELIN 100 MBPS network. The monitoring software is Foxboro’s PAC6.2 software, and its upper computer monitoring software is Invensys Wonderware’s InTouch10.1 configuration software. More

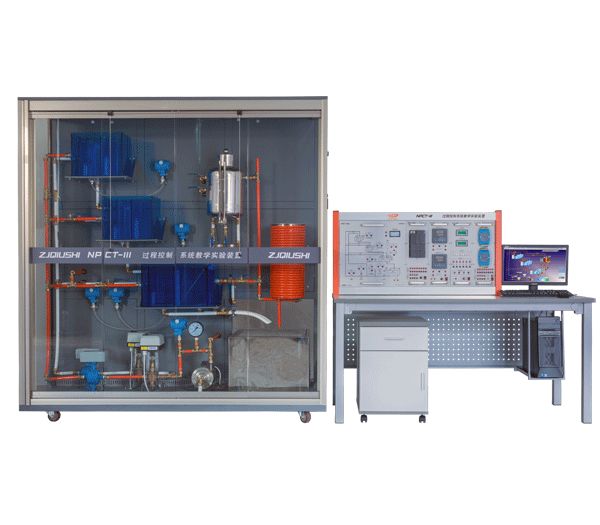

NPCT-FCS/ FCS2 Process control system teaching device This device integrates multi-functional equipment based on physical modeling objects of the industrial process, which sets automation instrument technology, computer technology, communication technology, automatic control technology in a body. It includes flow rate, pressure, temperature, liquid level and other thermal parameters. More

WPCT-II/III/IV Process control experimental device This device is designed according to experimental requirements of university teaching course: "the process control", "industrial automation instrument", in the use of modularizing design technology. The line of the system can be connected freely at fast joint by experimental personnel, which can form all kinds of experimental systems. More

PCT-V Distributed process control experimental device This device adopts modular design: use unit module as the basic unit. Using different modules can meet the need of many people doing different experiments (e.g. process control system training, industrial sensors training, etc.) More

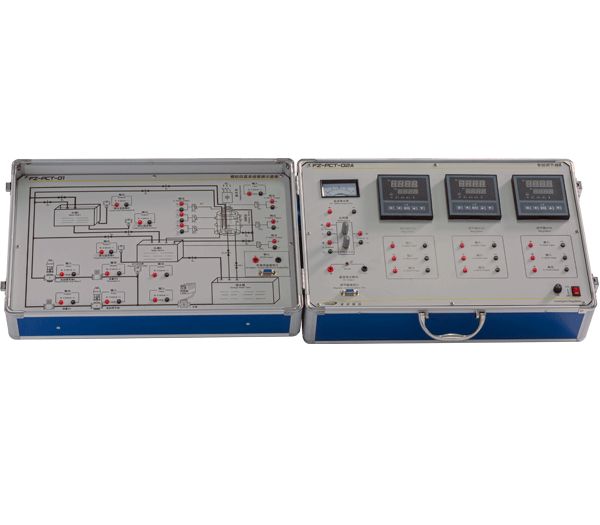

FZ-PCT Process control simulation system This system is developed based on the Siemens industrial control configuration software WinCC6.0. The transfer function of actual process control system object is transformed into difference equation and then is compiled in C language, which can simulate characteristics of the real object, and can convert the data of control computer into analog signals for external control systems use More

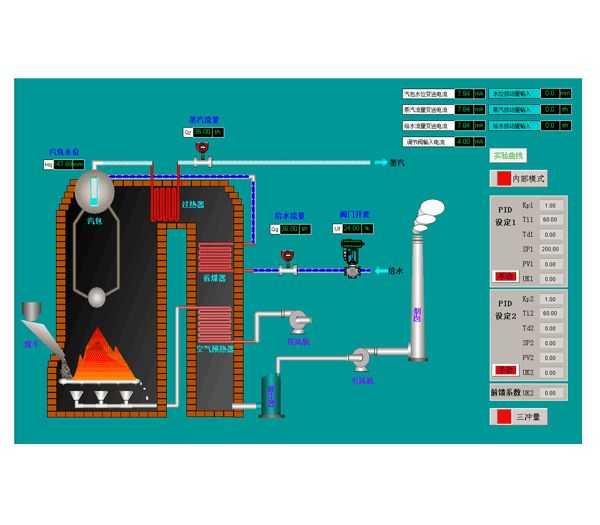

FZ-TIC Virtual Reality Simulation System for Water Level Control of Three - impulse Drum The control of three impulse drum water level is one of the most important control projects of the boiler. The level of the drum can directly affect the safety and operation of the system. The three-impulse control system is introduced to control the water level since the phenomenon of "false liquid level" in the bubble will cause the water level to increase or decrease sharply.The central idea is to adjust the water supply flow according to the water level, steam flow and water supply flow, therefore to stabilize the drum water level. More
