NMCL-II Modern power electronics and electric drive experimental teaching platform

This platform is designed according to the requirements of "motor", "motor drive", "power electronics", "electric drive automatic control system", "automatic control principle". It has the advantage of perfect experiment items, well comprehensive, compatibility and expansibility. This platform owns perfect personal security system, each measuring instruments, power supply has over-range and short circuit protection

NMCL-III Modern power electronics experimental teaching platform

This platform is designed according to the requirements of "electric drive automatic control system", "power electronics". While designing, it fully considers the actual experimental condition of students. Practical ability is being emphasized here. On the basis of varies electrical control technology, motor theory and AC/DC speed regulation system principle, and through experiments, students will apply their knowledge and improve gradually

NMCL-13B Researchable variable frequency speed regulation experiment system

The latest DSP product DSP2812 (32bit, high-performance, TI company) is used as main control chip in this system, together with ultra-high-speed PC, motor control algorithms can be realized. Using motion control card and interface software, real time control experiments such as AC induction motors and permanent magnet synchronous motor can be realized

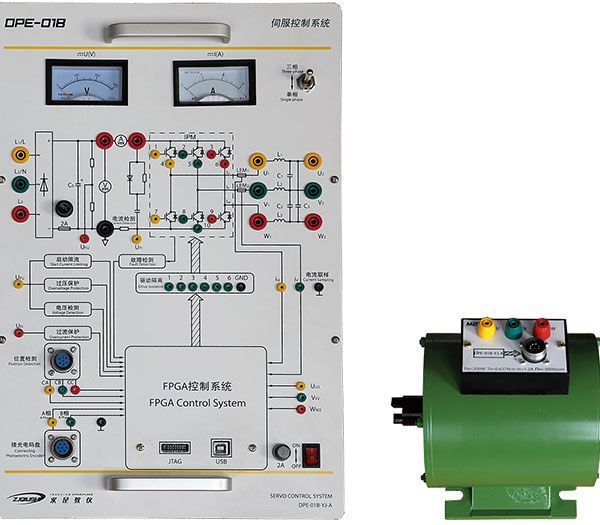

NMCL-01B FPGA control in AC servo system

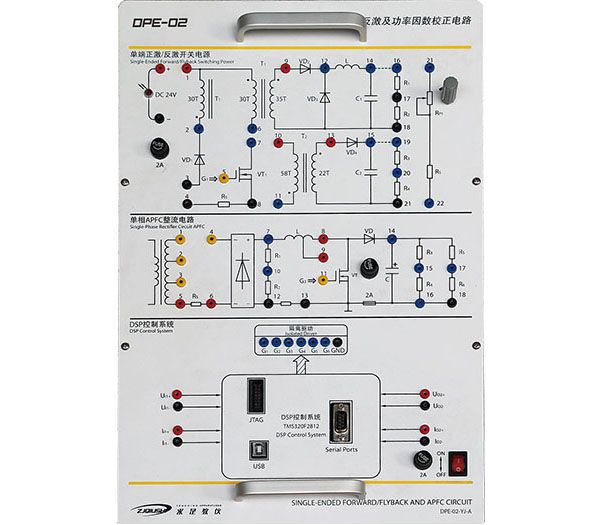

DEP-02 Single-ended forward flyback active power factor correction circuit

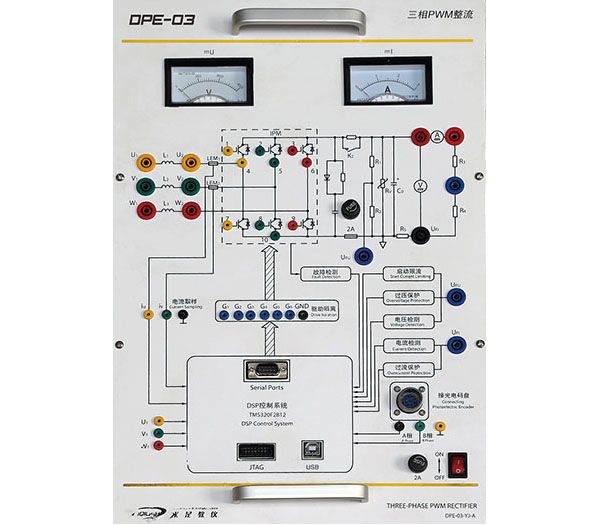

DPE-03 Three-phase PWM Rectifier
