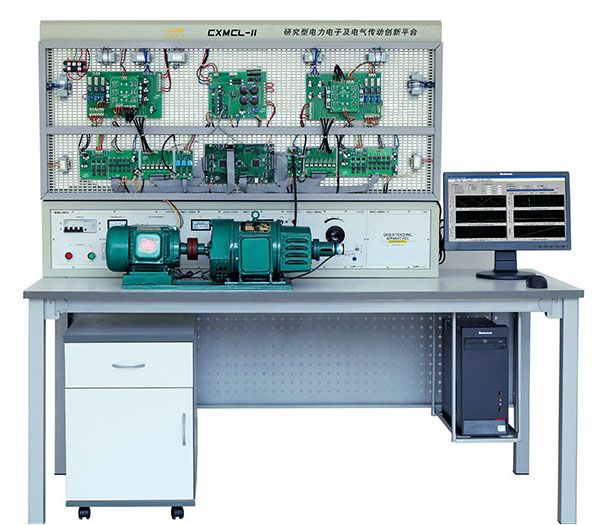

CXMCL-II Researchable power electronics and electric drive innovation platform

This platform includes several experiment contents such as digital power electronic technology, researchable AC/DC speed regulation system, wind power generation, solar power generation and other directions. The aim is to provide hardware environment mainly for undergraduate students to complete graduation design, for graduate students to conduct subject research and teachers enhance their ability.

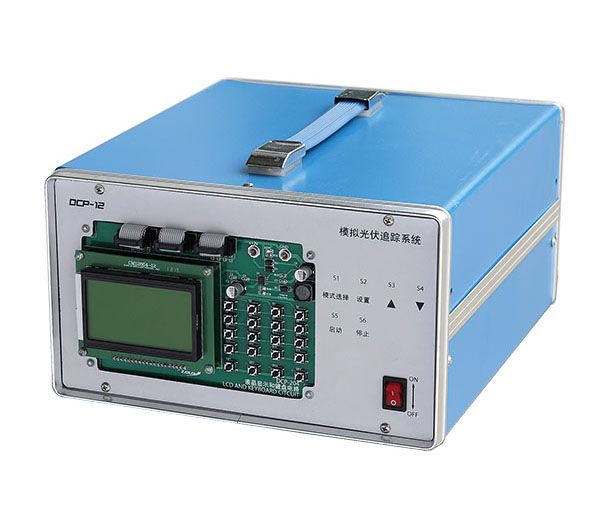

DCP-12 Analog photovoltaic system

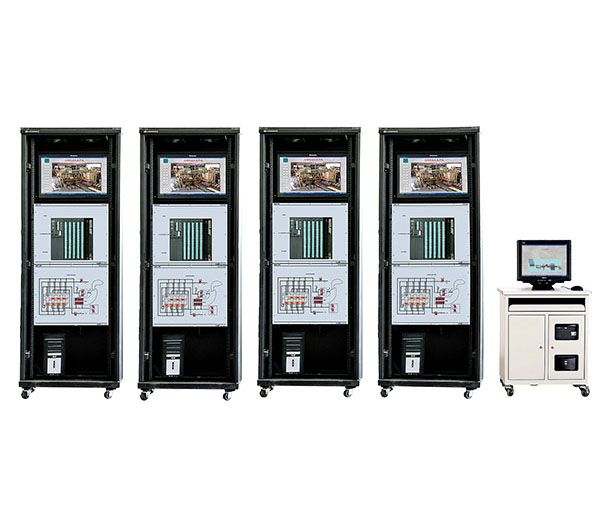

QSGK-ZG1 Modern rolling line automatic control system

n this system, hot rolling plate production line is the simulation object, computer simulation is the practical production line for work process, several S7-400 PLC and the central control computers is the controller for production line, all of the three parts above constitute the industrial automation experiment system.

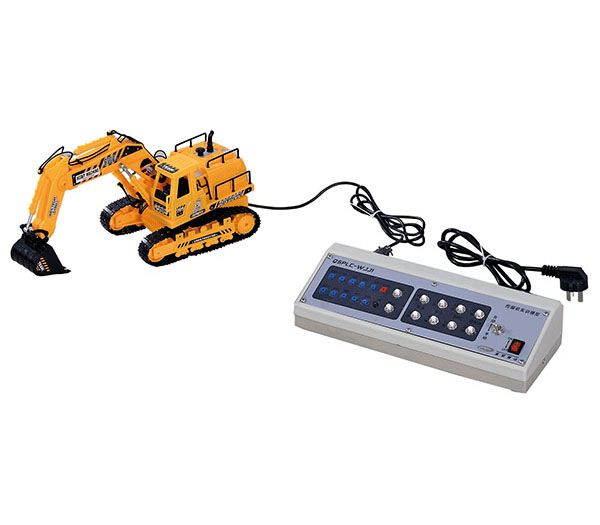

QSPLC-WJ1: Excavator experimental model

EEL-57A Relay contact control (1)

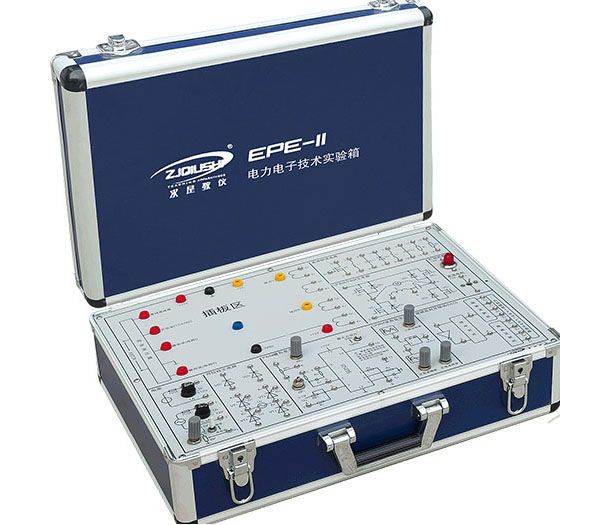

EPE-II Power electronic technology experimental box/EPE-III Power Electronic Technology experimental Box

Basic experiment:? TCA785 trigger circuit analysis and research Single phase bridge semi-controlled rectifier circuit experiment Single phase bridge full-controlled rectifier circuit experiment Active single-phase bridge inverter circuit experiment
